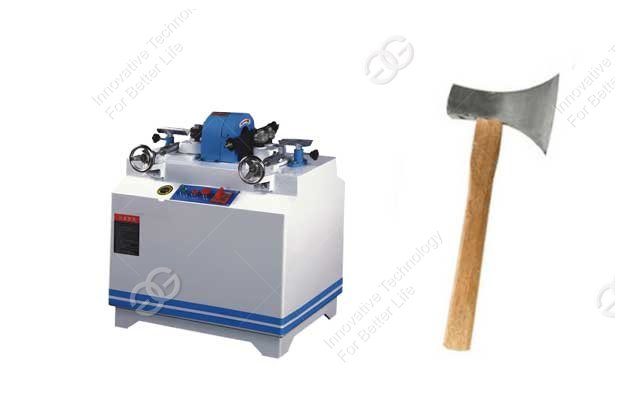

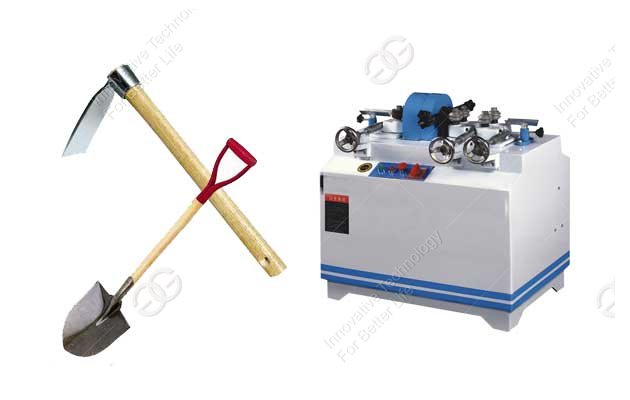

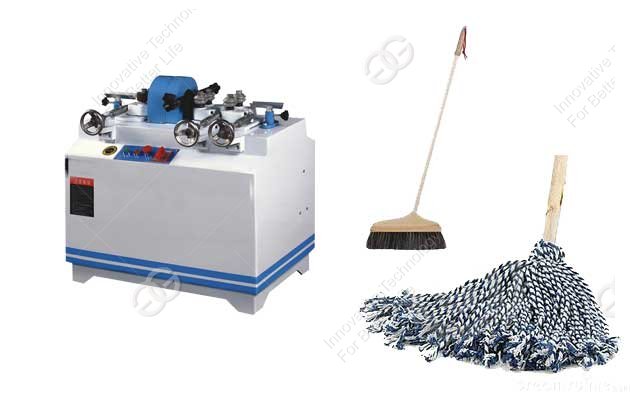

Automatic Wooden Axe Brush Handle Making Machine

This automatic wooden axe brush handle making machine is mainly used for processing the elongated wood and log core into wood stick according to the requirements.

This automatic wooden axe brush handle making machine is mainly used for processing the elongated wood and log core into wood stick according to the requirements.

Feature:
1.The proper material is widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.
2.Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine .
3. High efficiency,and can be customized the machine which can process more sticks for one time.

axe brush handle making machine


Technical Data

Model GG-9020 GG-9020A
Drawing-enroller Single Feeding&Single Discharging Double Feeding&Single Discharging
Main motor power 2.2kw 2.2kw
Feeding motor power 0.55kw 0.55kw
Spindle velocity 5000r/min 5000r/min
Feeding speed 3/5m/min 3/5m/min
Finished Rod diameter 6-20mm 6-20mm
Max.cutting quantity 1(semi-diameter)mm 1(semi-diameter)mm
Min.working length 300mm 300mm
Overall dimension 720*560*820mm 870*560*820mm
Machine weight 170kg 190kg
