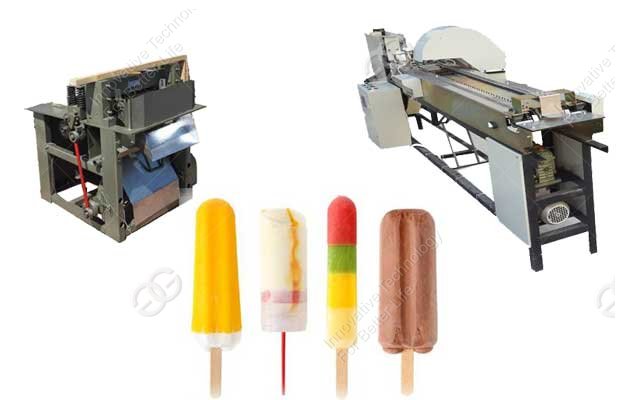

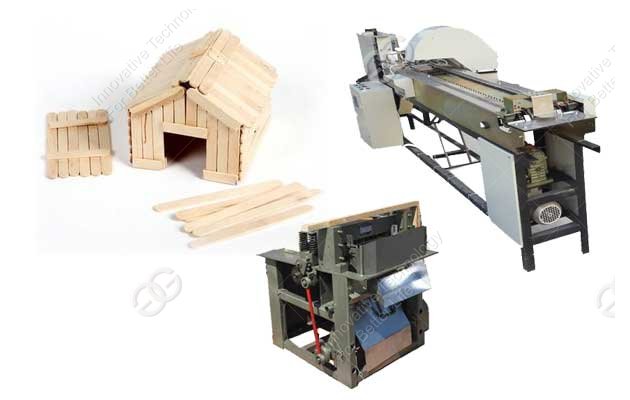

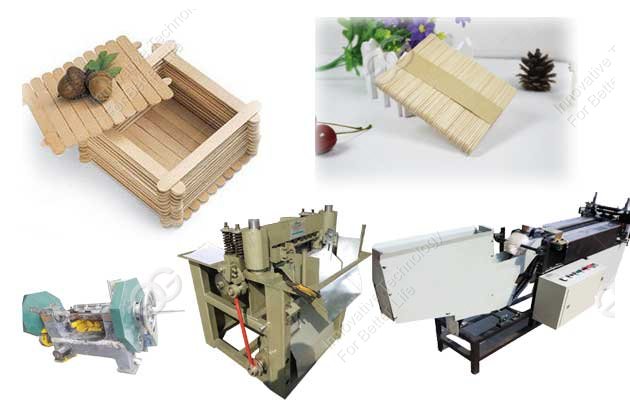

Tongue Depressor Making Machine|Ice Cream Stick Making Machine

Tongue depressor making machine is composed of several machines which is used for producing ice cream sticks and tongue depressor from raw material to finished tongue depressor and ice cream sticks.

Tongue depressor making machine is composed of several machines which is used for producing ice cream sticks and tongue depressor from raw material to finished tongue depressor and ice cream sticks.

The machines are listed below:
1)Double Segment Rotary Cutting Machine
2)Tri-Carved Cutting Machine
3)Tongue Depressor Stoving and Polishing Machine
4)Tongue Depressor Selecting Machine
5)Tongue Depressor Chamfering Machine
6)Tongue Depressor Branding Machine
7)Tongue Depressor Bundling Machine
8)Tongue Depressor Packing Machine

product introduction :
Cooking Machine:Frist,you should cook the log up to 80o~100oC for 3-4 hours
Rotary Cutting Machine:Cut the log into thin board then put in to Carve Cutting Machine
Carve Cutting Machine:Put the board which processed by Rotary Cutting Machine into this machine,then you can get the finished product with different sizes,by changing the moulds in the machine
The Chamfering Machine:It is used for embellishing the finished product line.
The Selecting Machine:It can select the finished product which from Carve Cutting Machine,if the finished product is curving,thin,and also remove the dust in the products.
The Bundling Machine:It can bunld the finished product to a bould of 50 pcs
The Knife Sharpening Machine:It is used for sharpening the knifes in the machine.

tongue depressor making machine








Technical Data

Machine Name

Power

(KW)

Weight

(KG)

Outside

dimension(M)

Quantity

Capacity

Rotary Cutting machine

10.87

2000

3.0*2.0*1.5

1

6900000
pcs/8h

Carve Cutting machine

2.2

400

1.2*1.2*1.3

1

2300000
pcs/8h

Rotary Drying Machine

11

3500

4.5*2.2*2.2

1



Chamfering Machine

1.5

300

1.2*0.9*1.0

1

25000
pcs/h

Selecting Machine

0.37

176

3.6*0.8*1.2

1

40000
pcs/h

Branding Machine

0.37

230

3.03*0.7*1.1

1

144000/8h

Bundling Machine

0.55

260

2.3*0.7*1.6

1

320000
pcs/8h

Knife Grinding Machine

1.18

1000

2.3*1*1.5

1
