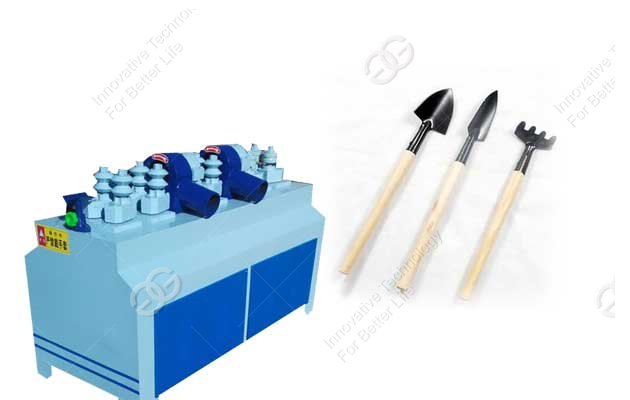

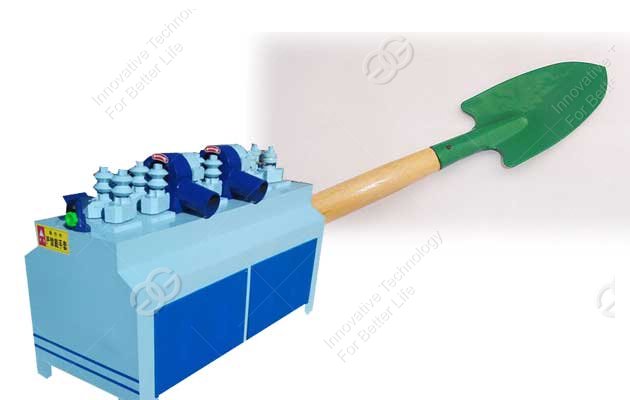

Round End Milling Machine For Broom Sticks

This Automatic round end milling machine is belong to wood round stick processing equipment,it is mainly make long strips bamboo or wood material and round wood into round sticks and smooth square sticks.The machine can be customized according to your wood handle diameter.

This Automatic round end milling machine is belong to wood round stick processing equipment,it is mainly make long strips bamboo or wood material and round wood into round sticks and smooth square sticks.The machine can be customized according to your wood handle diameter.

Feature:

1.materials widely, can process square stock and round stock embryo.

2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.

3.high productivity, the fastest feed can reach 18m/min, we can also design output more round sticks at one time according to customer's need

Advantage:

1.The proper material is widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.

2.Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine .

3.High efficiency, the highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time

Technical Data

Model	GGMC90-80C
Main motor power	4kw+4kw
Feeding motor power	0.75kw
Worm wheel deceletator	50:1
Spindle velocity	4000r/min
Feeding speed	3/5m/min
Cutting diameter	20-80mm
Front Max cutting quantity	6mm(Semi-diameter)
Back Max cutting quantity	2mm(Semi-diameter)
Min.working length	1000mm
Overall dimension	1870x610x1100mm
Machine weight	620kg
