Wood Shaving Machine For Sale|Wood Milling Machine

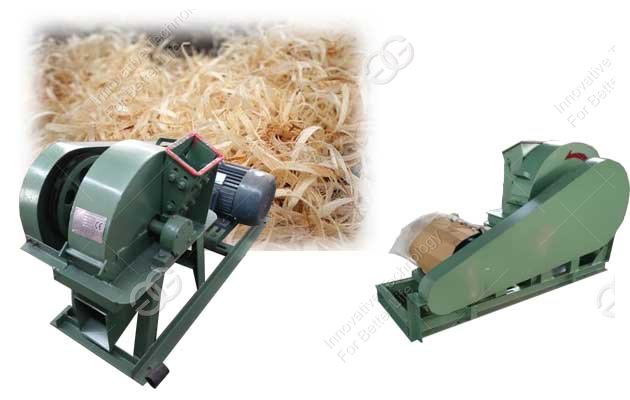

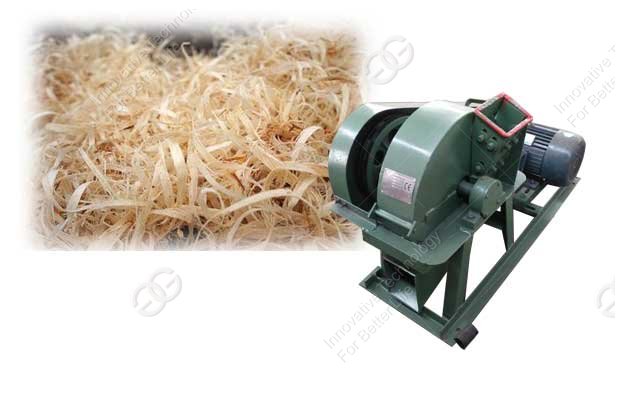

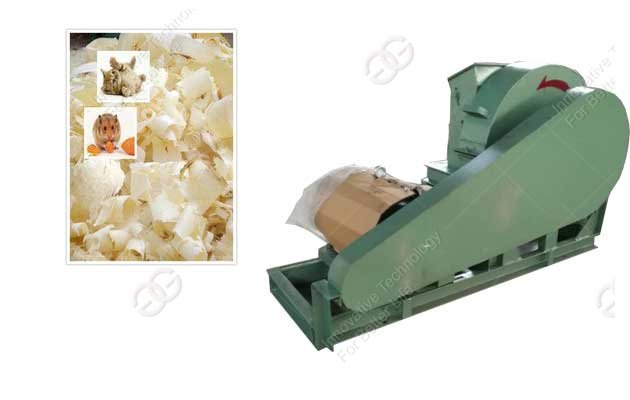

The wood shaving machine is a new machine production wood flour ideal, it can be of wood, tree a fork and other raw materials processed into wood chips, with less investment, low energy consumption, high productivity, good economic benefit, easy maintenance and so on.

The wood shaving machine is a new machine production wood flour ideal, it can be of wood, tree a fork and other raw materials processed into wood chips, with less investment, low energy consumption, high productivity, good economic benefit, easy maintenance and so on.

Working principle: using blade cutting and high-speed airflow impact, collision double grinding function in one, and can complete micro material sorting process. In the cutting and grinding process of the blade, the rotor produces a high speed air flow, which rotates with the cutting direction of the blade. The material accelerates in the air flow and repeatedly impacts the material to be crushed at the same time, thus speeding up the crushing rate of the material.

Applicable scope: the wood cutting machine processing pine, hardwood, poplar, fir, bamboo, because the machine structure is compact, small footprint, cut pieces of good quality, low power consumption, and is suitable for mobile operation, preparation section is widely used in small and medium Particleboardand fiber production enterprises, but also can be used for the self-employed for the production of wood products. It can be used for the cutting of fibrous culm like materials such as dried bamboo, thatch, corn stalk and sorghum stalk. The sawdust machine can also be used as particleboard and raw material for sawdust board and high-density board.

Technical Data

Model	GGW400
Capacity	300-500kg/h
Cutter head diameter	400mm
Knife quantity	4pcs
Inlet size	160200/150180mm
Main shaft rotary speed	450r/min
Power	7.5-11kw
Dimension	200700800mm
Weight	220kg
